DUAL PURPOSE FENCE ENERGIZER - PATRIOT
Product Details

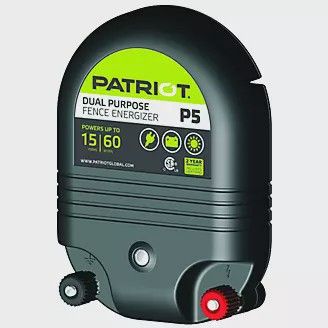

P5:
This electric fence charger can be used for any type of livestock and is perfect for intensive strip grazing. Using the power adaptor supplied, the Patriot P5 can be connected to a 110 V ac line input. By using the supplied battery leads the Patriot charger can be powered by a 12 V battery. It can be used with a 10 watt solar panel and a 12 volt battery (both not included). It is designed for smaller applications suitable for electrifying up to 15 miles (60 acres) of wire. It is flexible enough to be used for protecting barns, implement sheds or stables.
This electric fence charger can be used for any type of livestock and is perfect for intensive strip grazing. Using the power adaptor supplied, the Patriot P5 can be connected to a 110 V ac line input. By using the supplied battery leads the Patriot charger can be powered by a 12 V battery. It can be used with a 10 watt solar panel and a 12 volt battery (both not included). It is designed for smaller applications suitable for electrifying up to 15 miles (60 acres) of wire. It is flexible enough to be used for protecting barns, implement sheds or stables.
Features:
- Can be used as a 110 V fence charger
- Can be used as a 12 V battery fence charger
- Suitable for all types of livestock
- Stored energy: 0.65 J
- Maximum output energy: 0.5 J
- Typical output voltage performance/Open circuit: up to 8,000 V
- Standard load: Up to 5,800 V
- Ground rods required: 1
This electric fence charger can be used for any type of livestock and is perfect for intensive strip grazing. Using the power adaptor supplied, the Patriot P10 can be connected to a 110 V line input. By using the supplied battery leads the Patriot charger can be powered by a 12 V battery. It is suitable for electrifying up to 30 miles (100 acres) of wire. It can be used with a 110 watt solar panel and a 12 volt battery (both not included). It is ideal for protecting livestock and grain stores from predators and pests. It can also be used to prevent stock from damaging erosion areas.
Features:
- Can be used as a 110 V fence charger
- Can be used as a 12 V battery fence charger
- Suitable for all types of livestock
- Stored energy: 1.3 J
- Maximum output energy: 1 J
- Typical output voltage performance/Open circuit: up to 9,700 V
- Standard load: Up to 6,900 V
- Ground rods required: 2
- Stylish and rugged case design with built in carry handle
This electric fence charger can be used for any type of livestock and is perfect for intensive strip grazing. Using the power adaptor supplied, the Patriot P20 can be connected to a 110 V line input. By using the supplied battery leads the Patriot charger can be powered by a 12 V battery. It is suitable for electrifying up to 50 miles (165 acres) of wire and is the right tool for more heavy-duty applications. It can be used with a 20 watt solar panel and a 12 volt battery (both not included). Low impedance power means that the higher the fence load the more power is applied to the fence. The P20 is suited to larger livestock.
Features:
- Can be used as a 110 V fence charger
- Can be used as a 12 V battery fence charger
- Suitable for all types of livestock
- Stored energy: 2.7 J
- Maximum output energy: 2 J
- Typical output voltage performance/Open circuit: up to 10,500 V
- Standard load: Up to 7,600 V
- Ground rods required: 3
- Battery back up option for use in areas where the line power supply is irregular
This low impedance electric fence charger can be used for any type of livestock and is perfect for intensive strip grazing. Using the power adaptor supplied, the Patriot P30 can be connected to a 110 V line input. By using the supplied battery leads the Patriot charger can be powered by a 12 V battery. It is suitable for electrifying up to 65 miles (200 acres) of wire and is the right tool for more heavy-duty applications. It can be used with a 30 watt solar panel and a 12 volt battery (both not included). Low impedance power means that the higher the fence load the more power is applied to the fence. The P30 is suited to larger livestock.
Features:
- Can be used as a 110 V fence charger
- Can be used as a 12 V battery fence charger
- Suitable for all types of livestock
- Stored energy: 4.6 J
- Maximum output energy: 3 J
- Typical output voltage performance/Open circuit: up to 11,000 V
- Standard load: Up to 8,200 V
- Ground rods required: 3
- Battery back up option for use in areas where the line power supply is not available or reliable
- Optimized energy and voltage performance for all types of fence conditions
- Stylish and rugged case design with integrated carry handle
- High efficiency circuitry that increases the period between battery recharging
